Product selection of Cloud Platform for Power IOT |
Application | Type | | Functions |
Gateway | AF-GSM500-4G | ![1656896638977355.png 6.png](/static/upload/image/20220704/1656896638977355.png)
| Meter reading by LoRa or RS485 Uplink Communication:4G or Ethernet Protocol: Modbus-TCP,MQTT,etc,protocol can be customized Support breakpoint transmission,local data storage,local display and button setting.
|
Anet-1E2S-4G | ![1656896660161217.png 7.png](/static/upload/image/20220704/1656896660161217.png)
| Downlink:2* RS485 Uplink:4G
|
AF-GSM300-HW868 | ![1656896678135667.jpg 8.jpg](/static/upload/image/20220704/1656896678135667.jpg)
| Downlink:LoRa or RS485 It is used with AEW100-HW868 Uplink:4G Protocol:MQTT
|
AWT100-4GHW | ![1656896702169102.png 9.png](/static/upload/image/20220704/1656896702169102.png)
| Downlink:RS485 Uplink:4G,WiFi or Ethernet
|
IOT meter | AEW100 | ![1656896724144920.png 10.png](/static/upload/image/20220704/1656896724144920.png)
| Measurement:3 phase voltage,current,power,power factor ,etc. 2-31st individual harmonic and THD measurement Extreme records of voltage,current and power in this month and last 3 months Max demand and historical MD of last 12 months SOE Communication:RS485 or LoRa
|
ADW210 | ![1656896749171941.jpg 11.jpg](/static/upload/image/20220704/1656896749171941.jpg)
| Measurement: 4 circuits 3 phase voltage,current,power,power factor ,etc. Max demand Communication:RS485 or LoRa
|
ADW300 | ![1656896767684762.jpg 12.jpg](/static/upload/image/20220704/1656896767684762.jpg)
| Measurement:3 Phase voltage,current,power,power factor,etc. Accuracy:1 Max demand Communication:RS485,LoRa,4G,NB or 2G
|
| APM830 | ![1656896789137137.jpg 13.jpg](/static/upload/image/20220704/1656896789137137.jpg)
| Measurement:current,voltage,energy,SOE,etc. DI/DO,AI/AO,TF card,etc. Communication:2*RS485,Ethernet and Profibus-DP
|
| AMC96 | ![1656896827187548.jpg 14.jpg](/static/upload/image/20220704/1656896827187548.jpg)
| Measurement:current,voltage,active power,reactive power,etc. Accuracy:0.5 Communication:RS485 Certificate:CE,IEC
|
| ADL10-ET | ![1656896850119435.jpg 15.jpg](/static/upload/image/20220704/1656896850119435.jpg)
| Measurement:voltage,current,power,energy,etc. Multi-tariff function Communication:RS485 Mobus-RTU
|

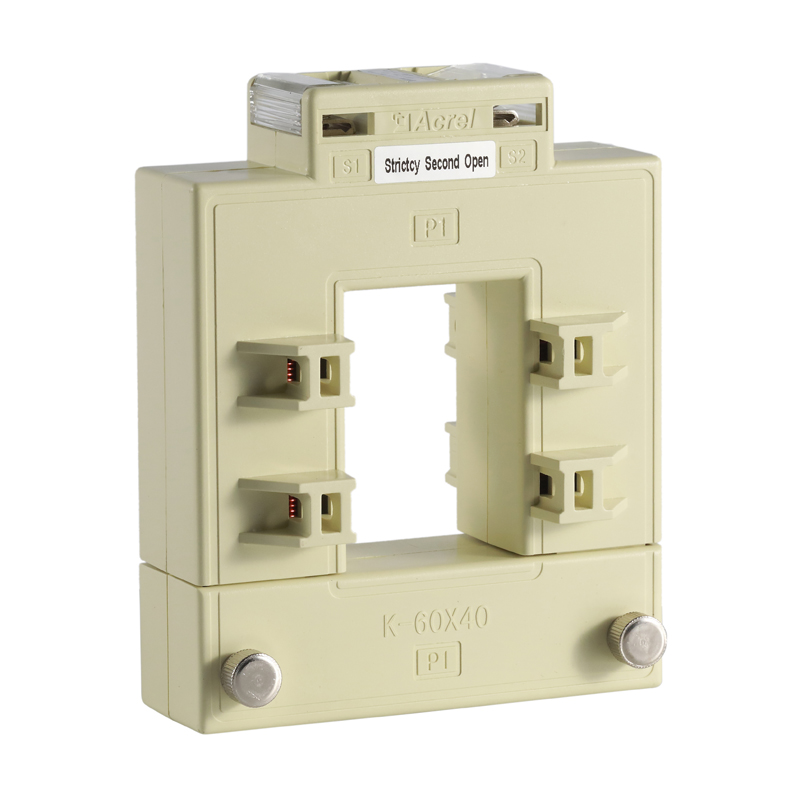

Split core open CT | AKH-0.66/K | ![1656896882134053.jpg 16.jpg](/static/upload/image/20220704/1656896882134053.jpg)
| Current ratio:up to 5000/5A Accuracy:0.5,0.2
|
Closed loop CT | AKH-0.66I | ![1656896902434426.jpg 17.jpg](/static/upload/image/20220704/1656896902434426.jpg)
| Current ratio:up to 6300/5A Accuracy:0.2,0.5
|
