Photovoltaic system solutions

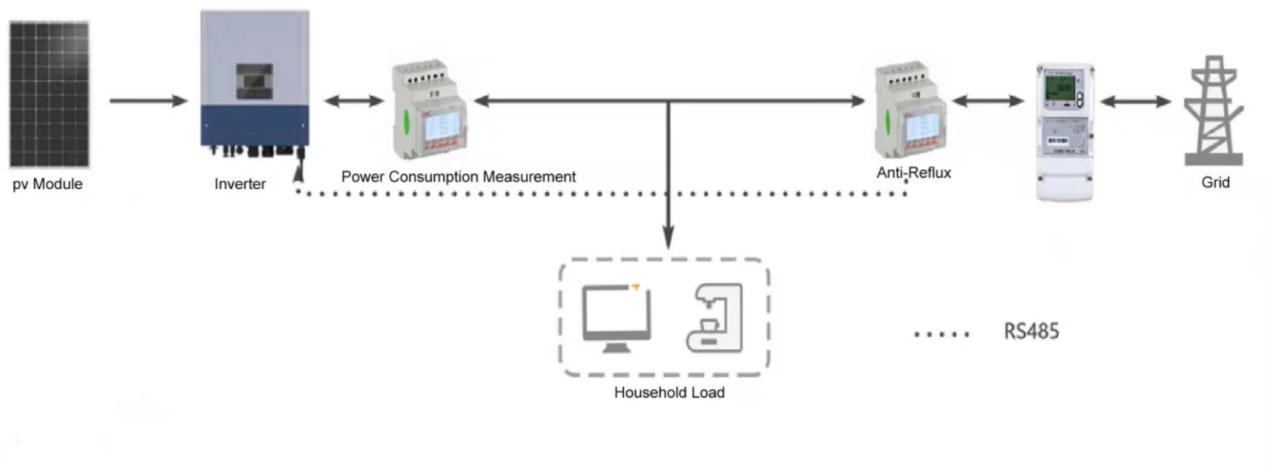

Distributed photovoltaic solutions

Nowadays, grid companies usually require photovoltaic grid-connected systems to be irreversible , that is, the electricity generated by photovoltaic grid-connected systems is consumed by local loads, and excess electricity is not allowed to supply to the grid. The system can regulate power generation in order to prevent the photovoltaic grid-connected system from generating reverse power.

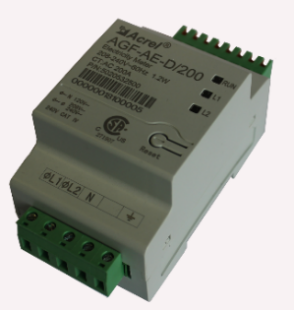

AGF-AE-D

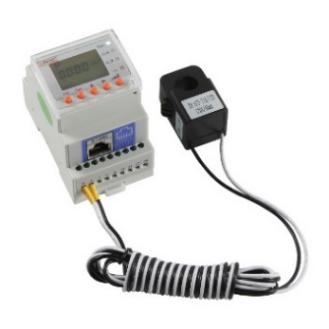

ACR10R

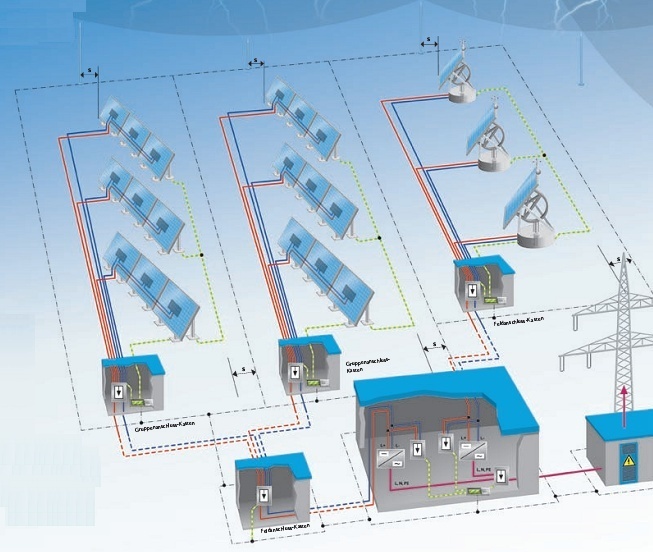

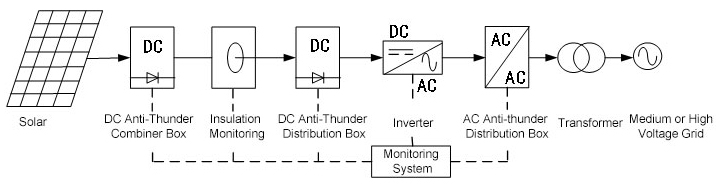

Centralized PV solutions

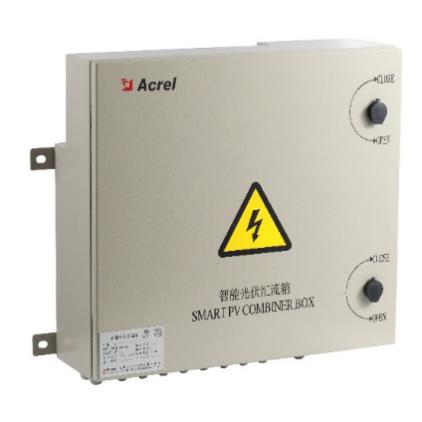

In the solar PV power generation system, the smart PV combiner box reduces the connection between the solar PV cell array and the inverter. The box can monitor the operating status of the solar panels, lightning protector and DC circuit breaker. With RS485 interface, the device can upload the measured and collected data and equipment status.

구조

Solution for PV anti-backflow

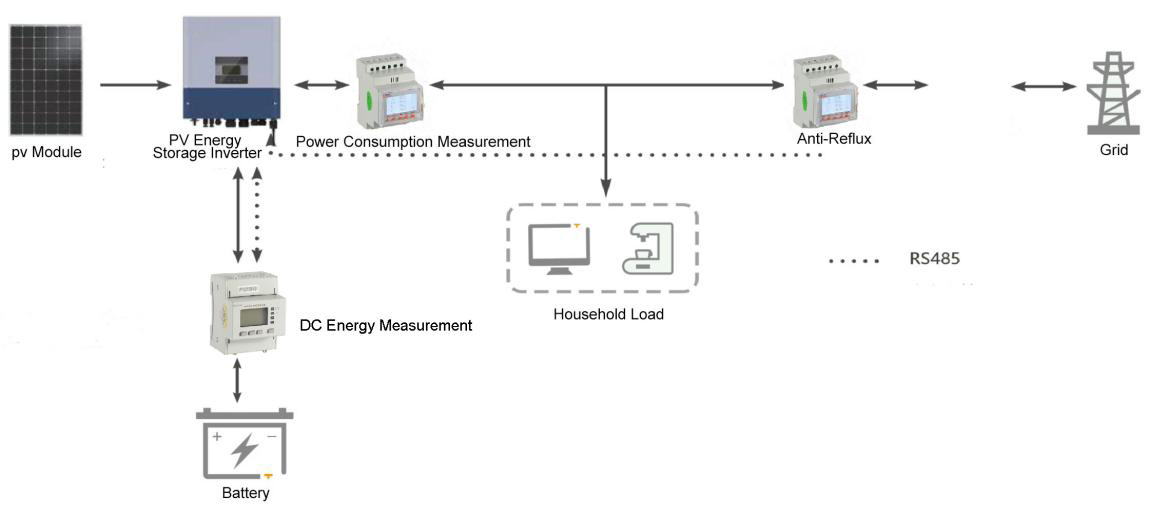

Solution for PV DC coupled energy storage

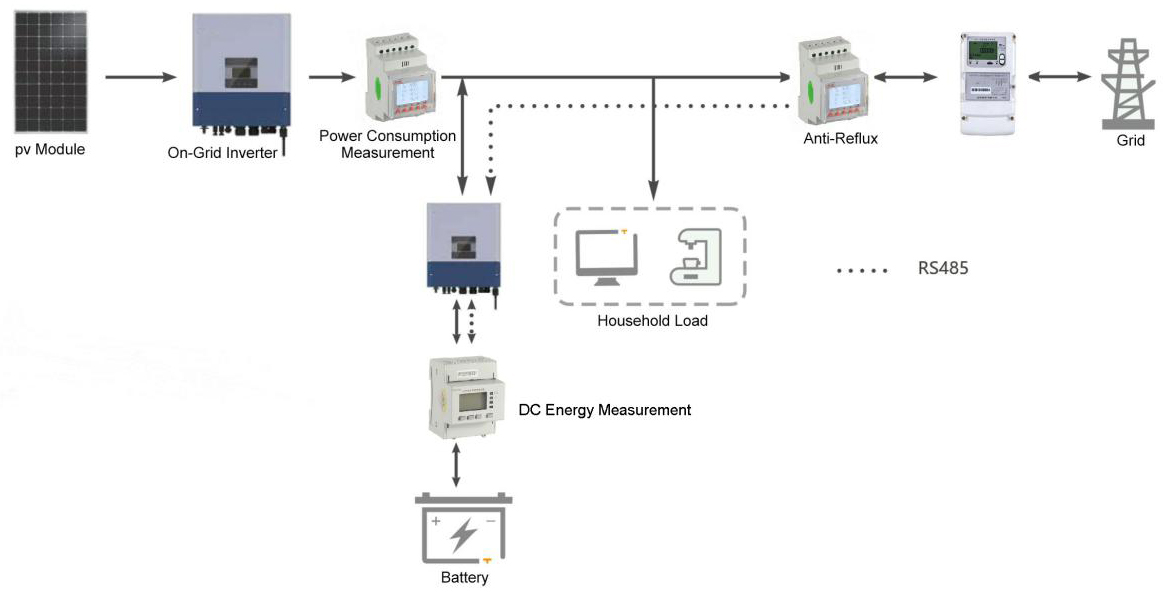

Solution for photovoltaic AC coupled energy storage



Centralized PV solutions





주요 기능

• Measure power generation and the use of electricity,
• Data refresh rate: 250ms,

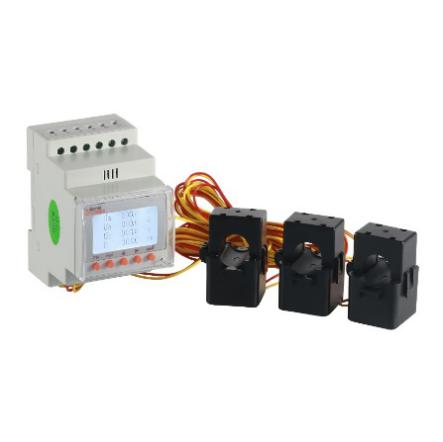

• Split core CT, 300A current,
• Communication: RS485 and grid-connected inverter or energy storage inverter

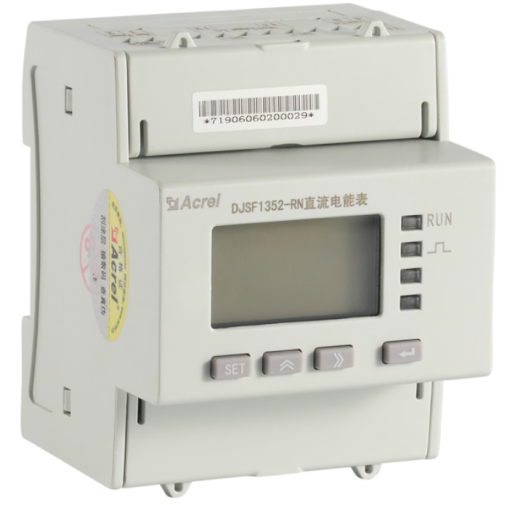

DJSF1352-RN DC Energy Meter


DJSF1352/RN


Accuracy: 1, voltage output: ±12V
Communication: infrared and RS485 communication, Modbus-RTU and 645 protocol
DIN rail installation
Support hall sensor or shunt input


• Current specification: 20A, perforation connection
• 3 DI
• Temperature measurement
• Busbar voltage measurement: DC 1500V
• LCD display

제품 선택

Anti-reflux

Application

Model

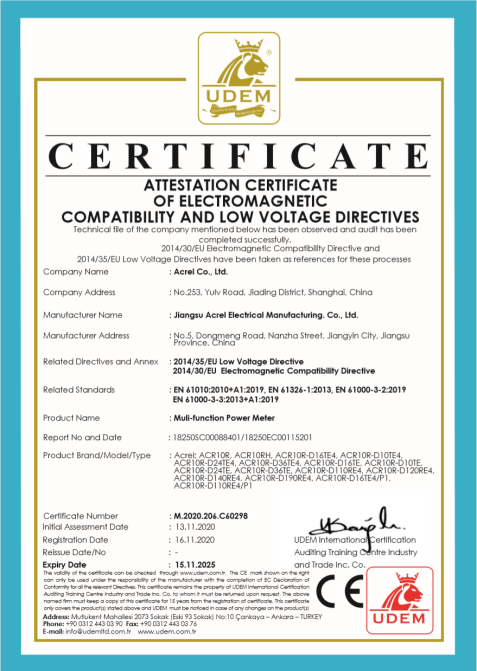

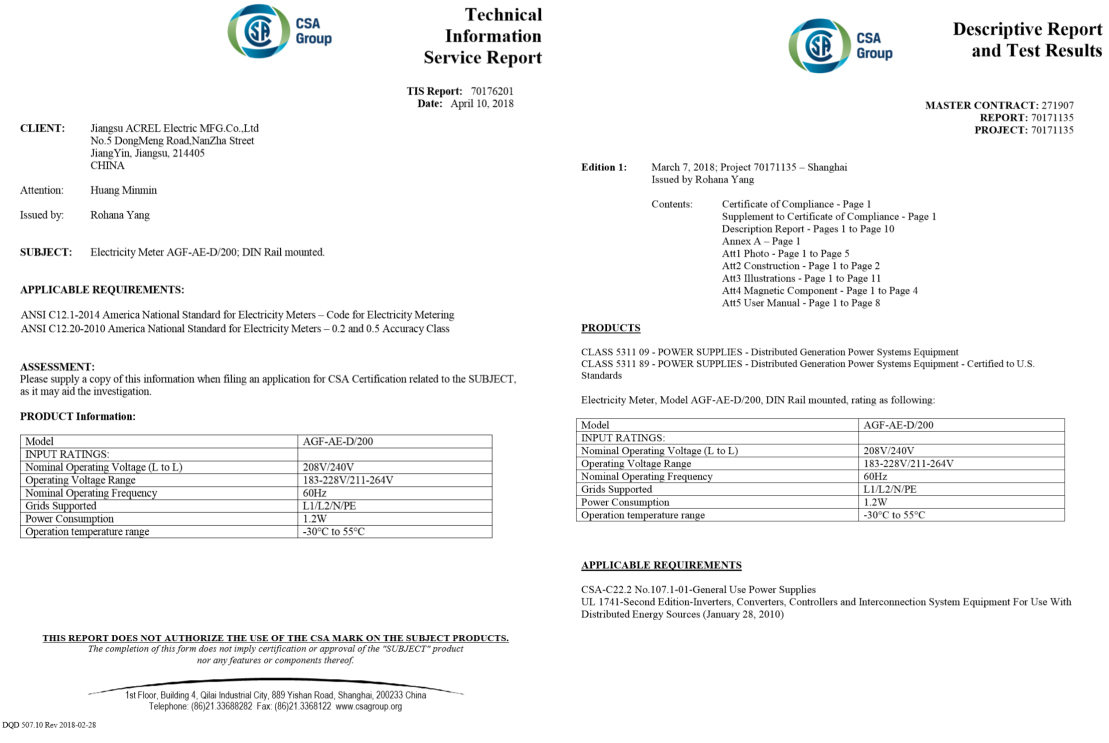

Certificate

Product

Single phase

AGF-AE-S

ANSI C12


ACR10R-D10TE

CE


Two phase

AGF-AE-D

ANSI C12
     UL 1741


Three phase

ACR10R-D10TE4

CE

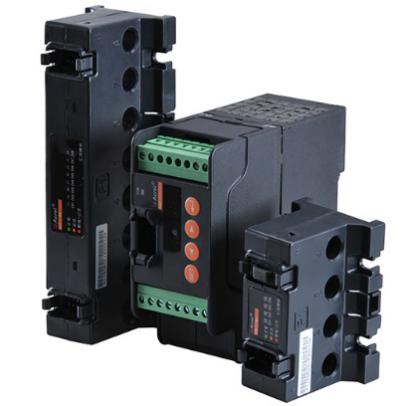

AGF Series Confluence Acquisition Device



Product

Combiner box


PV Confluence    Acquisition Device
