Energy Consumption Monitoring Solution For Base Station

It is necessary to measure and monitor electrical parameters and measure energy in AC side of tower base station such as state grid,diesel,air conditioner,lighting,power supply and so on. In DC side,it is necessary to monitor electrical parameters and measure energy such as base station communication device,battery and other devices working under -48V power supply.The data can be real-time uploaded by RS485.

구조




주요 기능

1. Measurement:multi circuits voltage,current,power,energy and other electrical parameters.
2. Communication:RS485 Modbus-RTU,NB or 4G
3. Certificate:With CE and IEC
4. Accuracy:0.5s or 1

제품 선택

Name


Model

Main Function

AC single circuit energy meter


AMC96L-E4/KC

  1. Installation:panel mounted

  2. 1 circuit 3 phase input 220V/5A 50/60HZ

  3. Measurement:voltage,current,power,energy and other parameters.

  4. Communication:RS485 Mobus RTU

Multi circuits AC energy meter


AMC96N-4E3

  1. Installation:panel mounted

  2. 4 circuits 3 phase or 12 circuits single phase AC input,external    CTs,50/60HZ

  3. Measurement:voltage,current,energy and other parameters.

  4. Communication:RS485 Mobus RTU

Multi circuits AC energy meter


DTSD1352-xSyD

  1. Installation:DIN Rail 35mm

  2. X circuits 3 phase and Y circuits single phase AC input,external    CTs,50/60Hz

  3. Measurement:voltage,current,power,energy and other parameters

  4. Communication:RS485 Modbus RTU

Multi circuits DC energy meter


AMC16-DETT

  1. Installation:DIN Rail 35mm

  2. 6 circuits DC input,-48V voltage input,current input by 5V output    hall effect current sensor

  3. Measurement:DC voltage,current,power,energy and other parameters

  4. With ±12V inner power supply for hall    effect current sensor

  5. Communication:RS485 Modbus RTU

Wireless energy meter


ADW350

  1. Installation:DIN Rail 35mm

  2. 3 circuits DC input or 1 circuit 3 phase AC input

  3. Measurement:voltage,current,power,energy and other parameters

  4. Communication:NB or 4G

Hall Sensor


AHKC

  1. Ratio：1000A/5V

  2. Common Specification: 1000A/5V

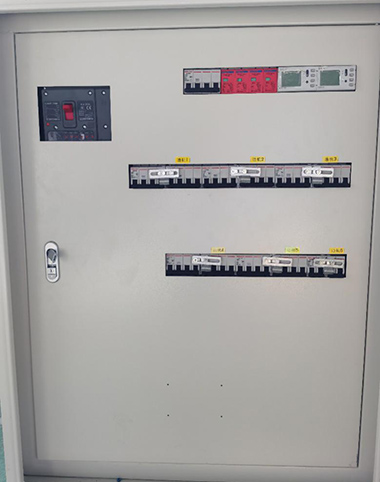

현장 사진

4

1

5

3

6

7
