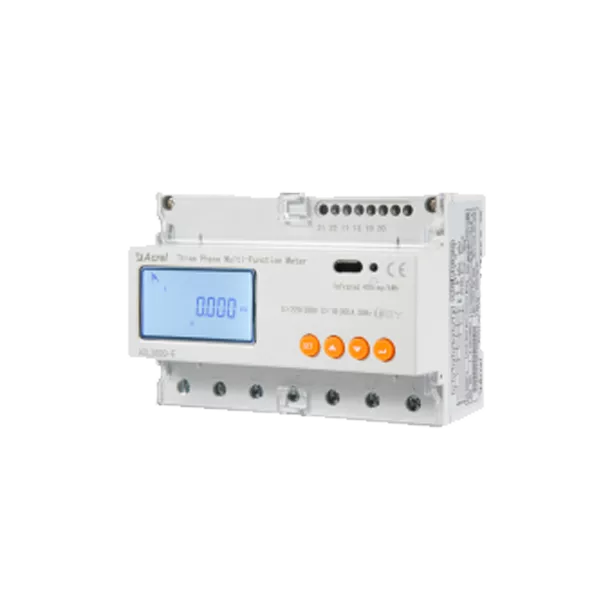

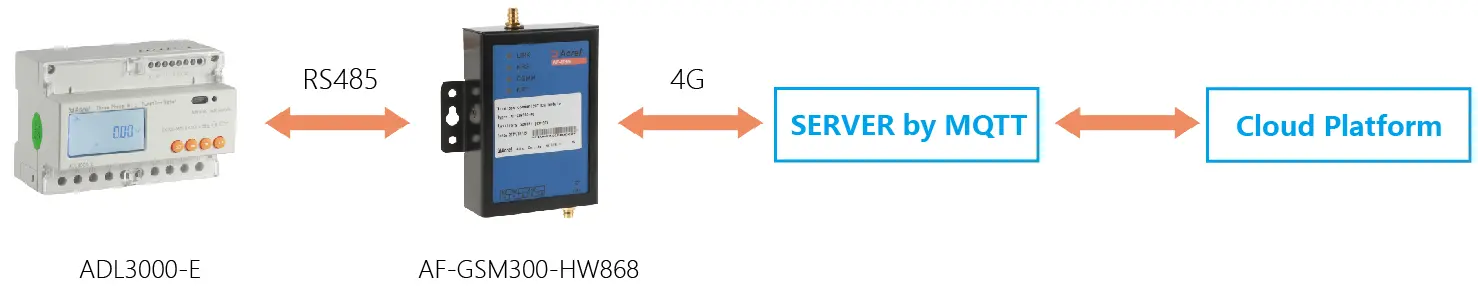

◊ Communication

RS485(Modbus-RTU)

◊ Rated U and I

AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A

◊ Accuracy

kWh: Class 0.5S,kVarh:Class 2

◊ Frequency

50/60HZ(Optional),range: 45~65HZ

◊ Display

8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)

◊ Pulse output

Pulse output kWh/kvarh

◊ Consumption

<10VA(Single phase)

◊ Installation

DIN 35mm

◊ Dimension(L*W*H):126.5*88*69.5mm

◊ Switch relay: Magnetic latching relay（ADL3000-E build-in）

◊ Clock:≤0.5s/d

◊ Starting current:

Direct connect: 0.004Ib

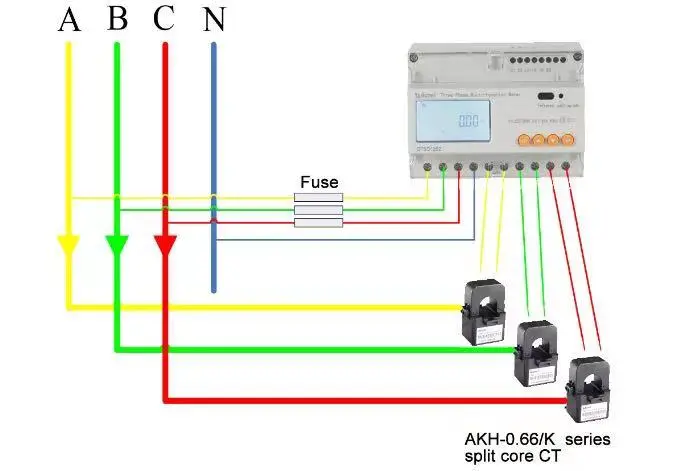

Connect via CT: 0.001ln

Diverse Electricity Parameters Measurement

● Harmonic (2~31st voltage&current)---Optional

● F (Frequency)

● U (3-phase Voltage)

● I (3-phase Current)

● kWh (3-phase positive Kilowatt-hours)

● kVarh (Kilovar-hours)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

● Data Frozen (last 48 months or last 90 days)

● Max demand and occurrence time

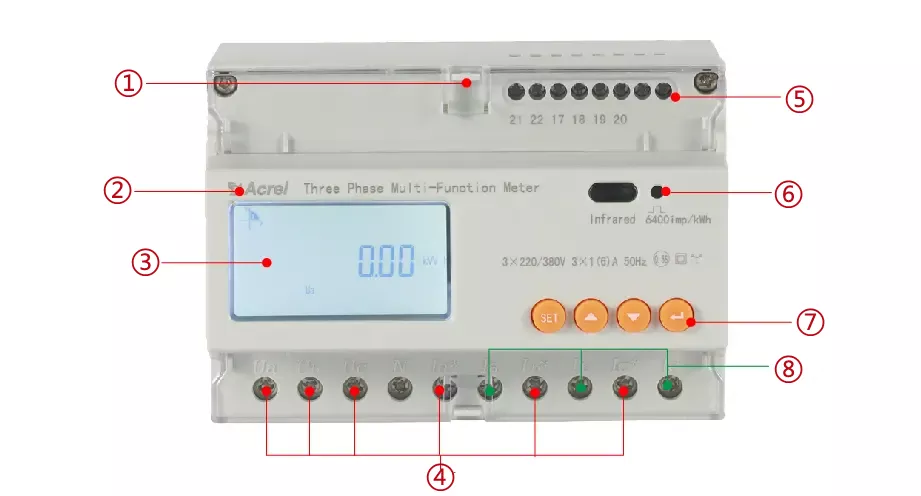

① Seal for Anti theft

② Brand

③ Panel

④ Enter-wire

⑤ Auxiliary function

⑥ Pulse output light

⑦ Button

⑧ Outlet wire
