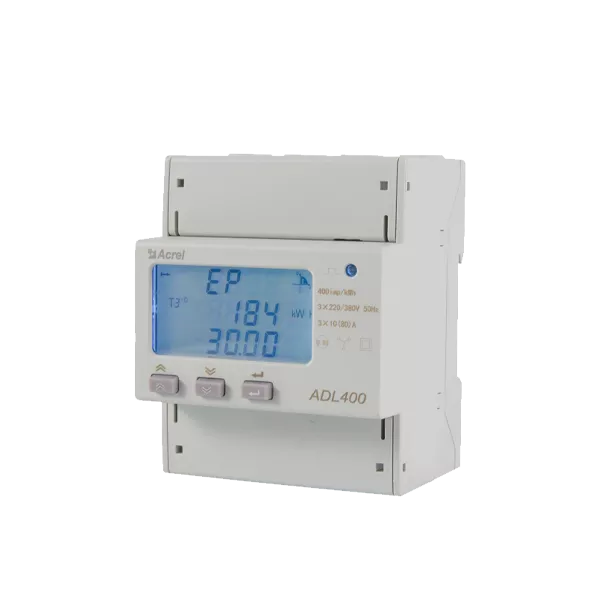

Home >> 제품 >> 에너지 관리 >> ADL 시리즈 딘 레일 에너지 미터
● AC220V
● 3×1(6)A,3×10(80)A
● RS485(MODBUS-RTU)
● 매개변수 설정
● LCD 디스플레이
● kWh급 0.5
● DIN 35mm
| Accuracy |
| kWh Class0.5s |
| Frequency |
| 45-65Hz |
| Power Supply(self supply) |
| 154-264Vac |
| Pulse output |
| kWh |
| Input consumption |
| ＜1VA |
| Dimension(L*W*H) |
| 90*72*65mm |
| Installation |
| DIN35mm |
| Clock |
| Error≤0.5s/d |
| Starting current |
| 0.01A/0.001A |
Diverse Electric Parameters Measurement
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● Harmonic (2~31st voltage¤t)---Standard
● U (3-phase Voltage)
● I (3-phase Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● S (Apparent power)
● PF (Power factor)
HMI for Common Configuration
● PT or CT ratio
● Wiring methods (3P4W or 3P3W)
● Back linght time
● RS485 (MODBUS-RTU) communication setting

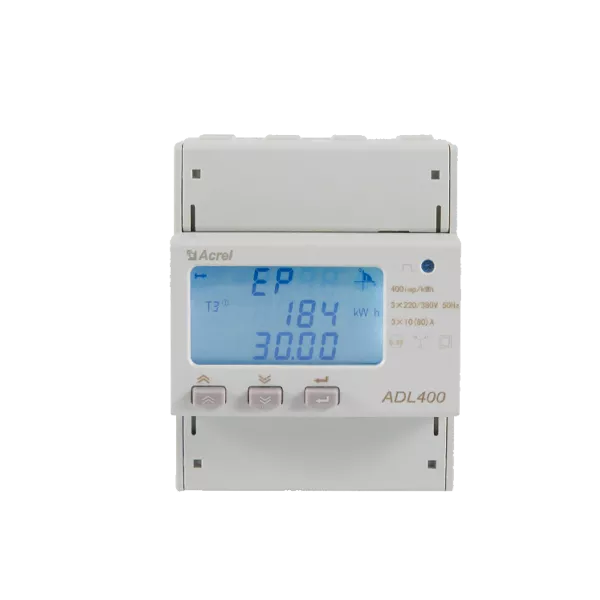

① Voltage Enter-wire
② Brand
③ Panel
④ Up Button
⑤ Down Button
⑥ Auxiliary function
⑦ Pulse Output
⑧ Model
⑨ Set Button
⑩ CT Enter-wire
