Home >> 제품 >> 에너지 관리 >> ADL 시리즈 딘 레일 에너지 미터
● AC220V
●10(80)A
●RS485(MODBUS-RTU)
●파라미터 설정
●LCD 디스플레이
●kWh급 1급
●DIN 35mm

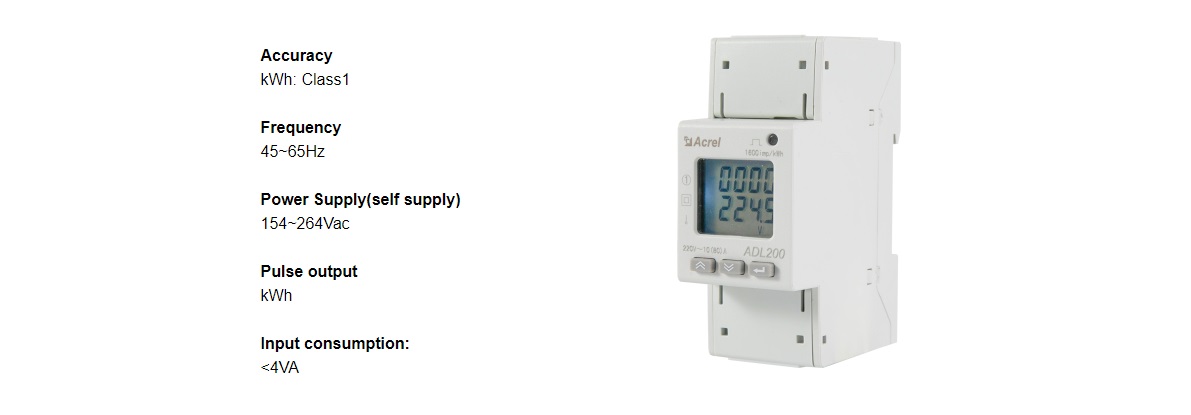

| Accuracy |
| kWh Class1 |
| Frequency |
| 45-65Hz |
| Power Supply(self supply) |
| 154-246Vac |
| Pulse output |
| kWh |
| Input consumption |
| ＜4VA |

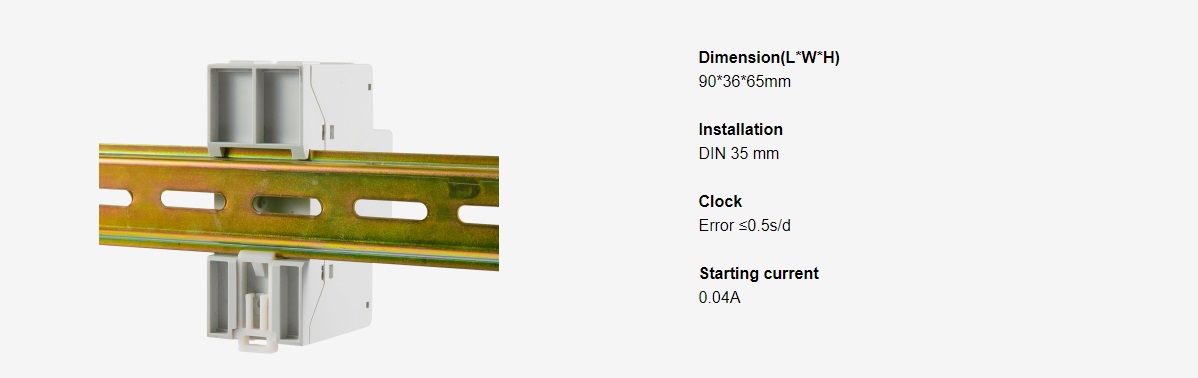

| Dimension(L*W*H) |
| 90*36*65mm |
| Installation |
| DIN35mm |
| Clock |
| Error≤0.5s/d |
| Starting current |
| 0.04A |
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display
① Enter-wire
② Brand
③ Panel
④ Up Button
⑤ Down Button
⑥ Pluse Output
⑦ Model
⑧ Set Button
⑨ Out-wire

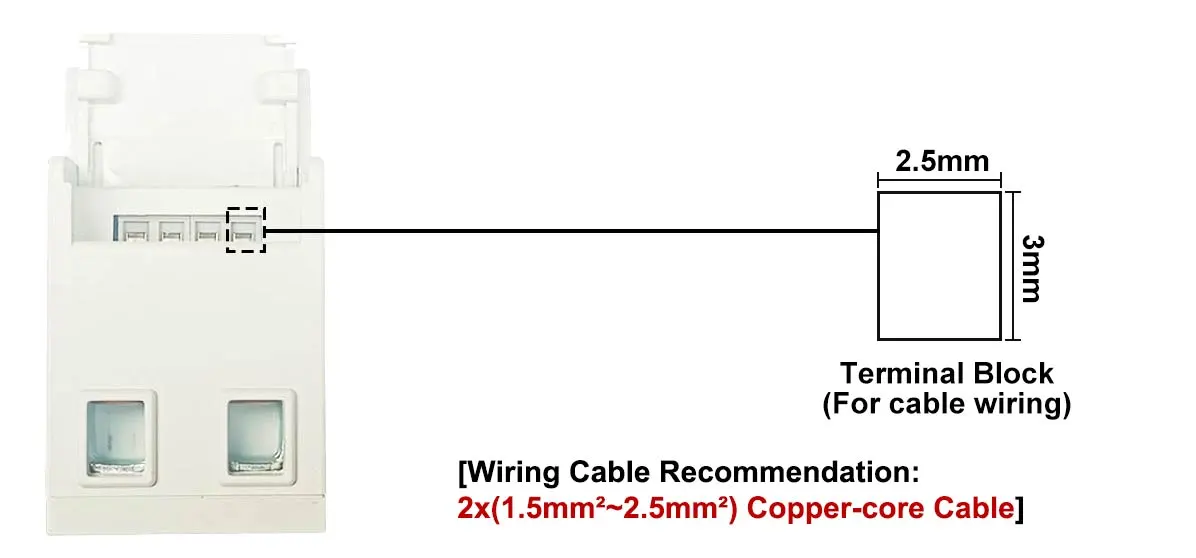

Note：The torque of direct connect should not be greater than 4.0N·m.
