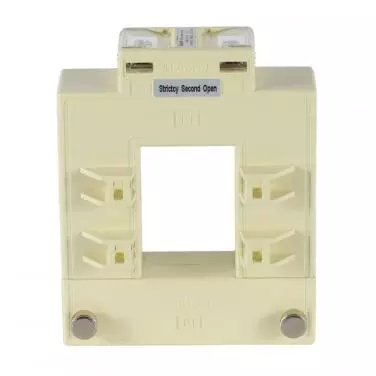

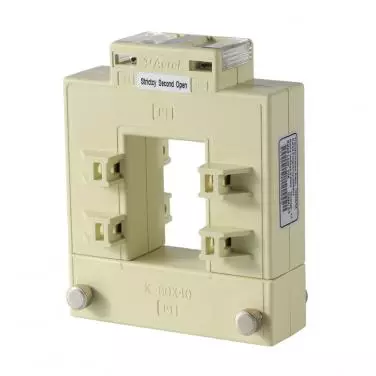

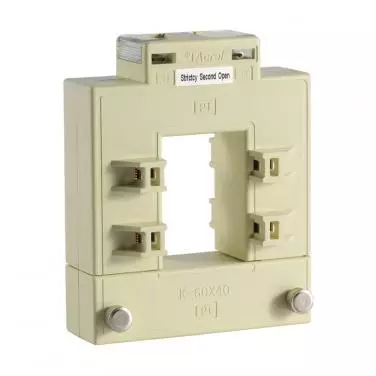

Home >> 제품 >> 파워 센서 >> AKH-0.66 저전압 변류기
● Split core current transformer

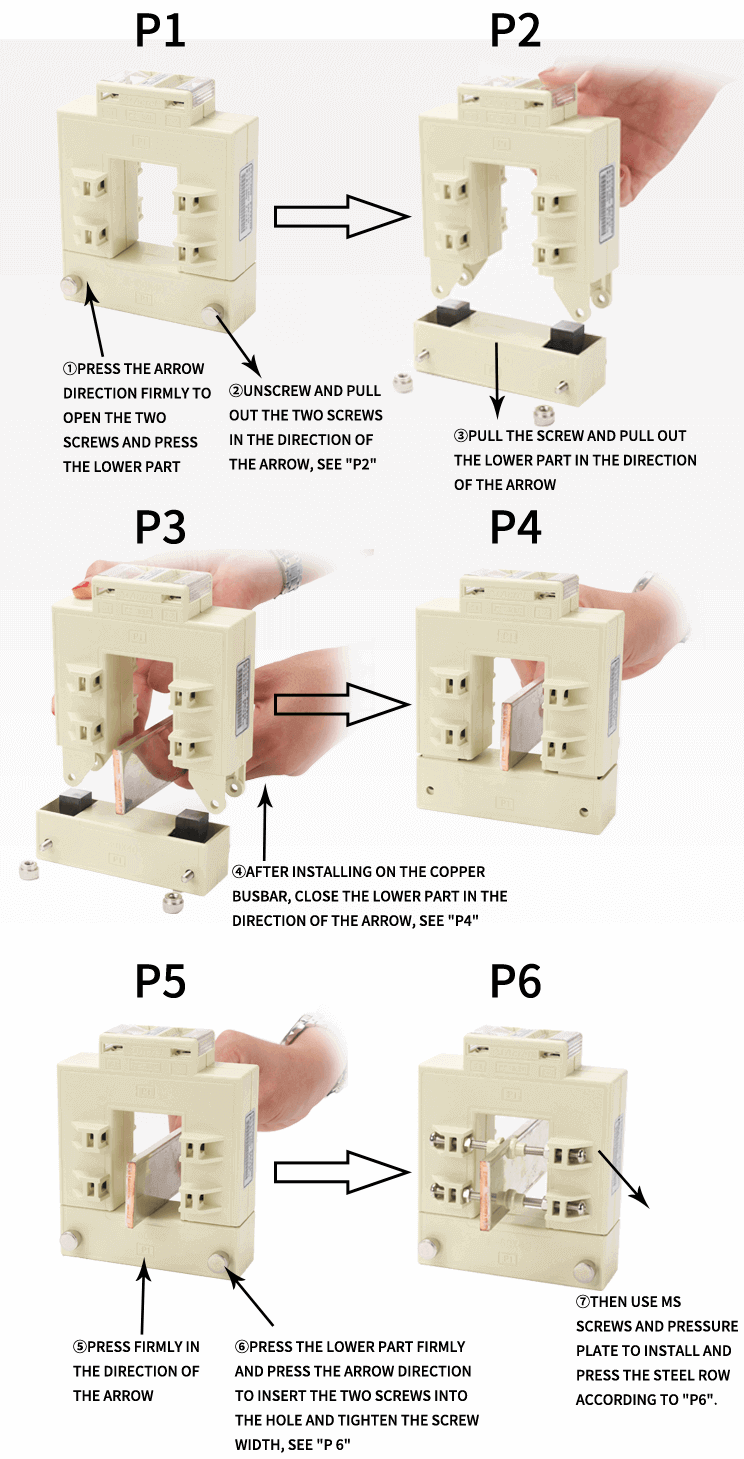

● Easy to install without power off
● Suitable for electricity renovation project

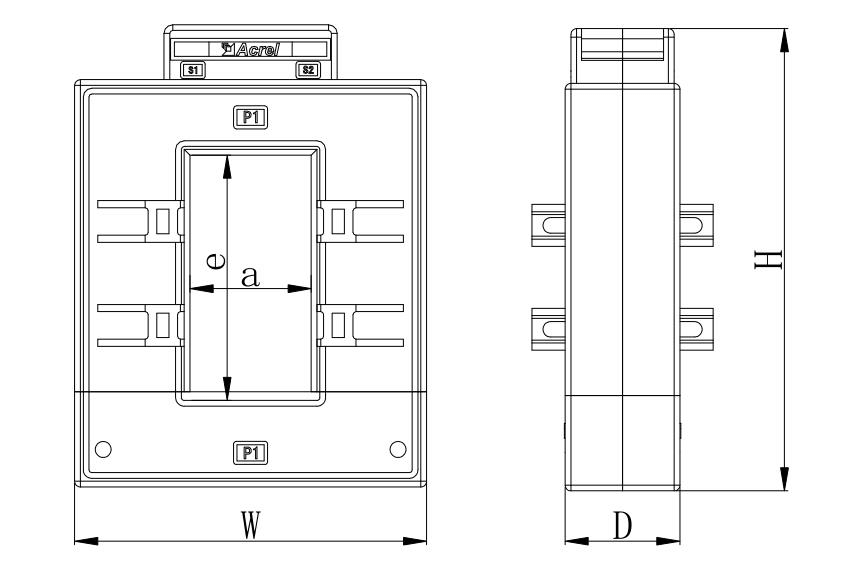

Size Specification | Outline size | Through size | Note | ||||
| W | H | D | a | e | Specification(A) | Quality（kg） | |
| K-30×20 | 90 | 114 | 40 | 22 | 32 | 20-400 | 0.8-0.9 |
| K-60×40 | 114 | 140 | 36 | 42 | 62 | 250-2000 | 1.0-2.0 |
| K-80×40 | 122 | 162 | 40 | 42 | 82 | 300-3000 | 1.2-2.4 |
| K-80×50 | 114 | 159 | 36 | 52 | 82 | 250-1000 | 1.1-1.4 |
| K-80×80 | 144 | 159 | 36 | 82 | 82 | 250-1000 | 1.3-1.5 |
| K-120×80 | 144 | 199 | 36 | 82 | 122 | 500-1500 | 1.5-2.3 |
| K-120×60 | 164 | 214 | 52 | 62 | 122 | 400-5000 | 1.6-3.0 |
| K-100×40 | 144 | 194 | 52 | 42 | 102 | 1000-5000 | 1.6-3.2 |
| K-130×40 | 144 | 224 | 52 | 42 | 132 | 1000-5000 | 1.6-3.6 |
| K-140×60 | 164 | 234 | 52 | 62 | 142 | 1000-5000 | 1.7-3.7 |
| K-160×80 | 184 | 254 | 52 | 82 | 162 | 1000-5000 | 2.8-3.7 |
| K-200×80 | 184 | 294 | 52 | 82 | 202 | 1000-5000 | 3.5-4.5 |
