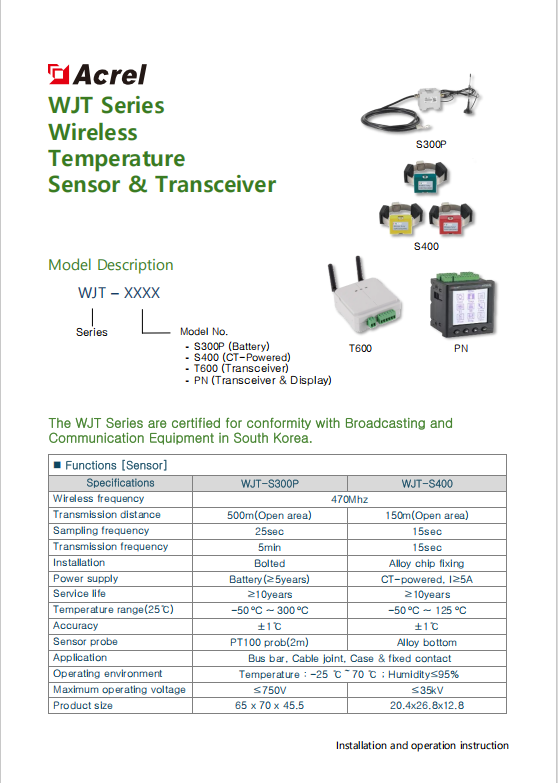

Specifications

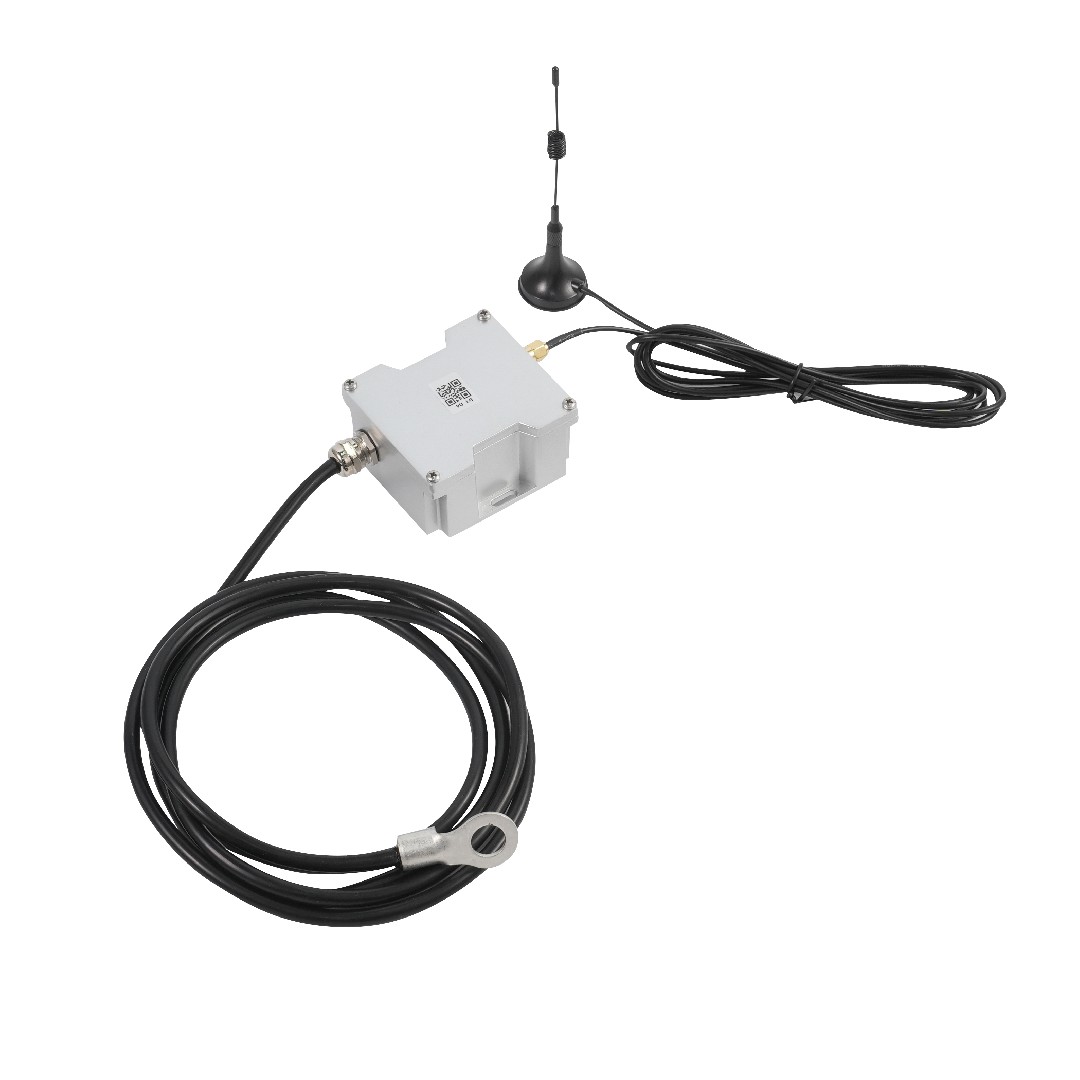

WJT-S300P

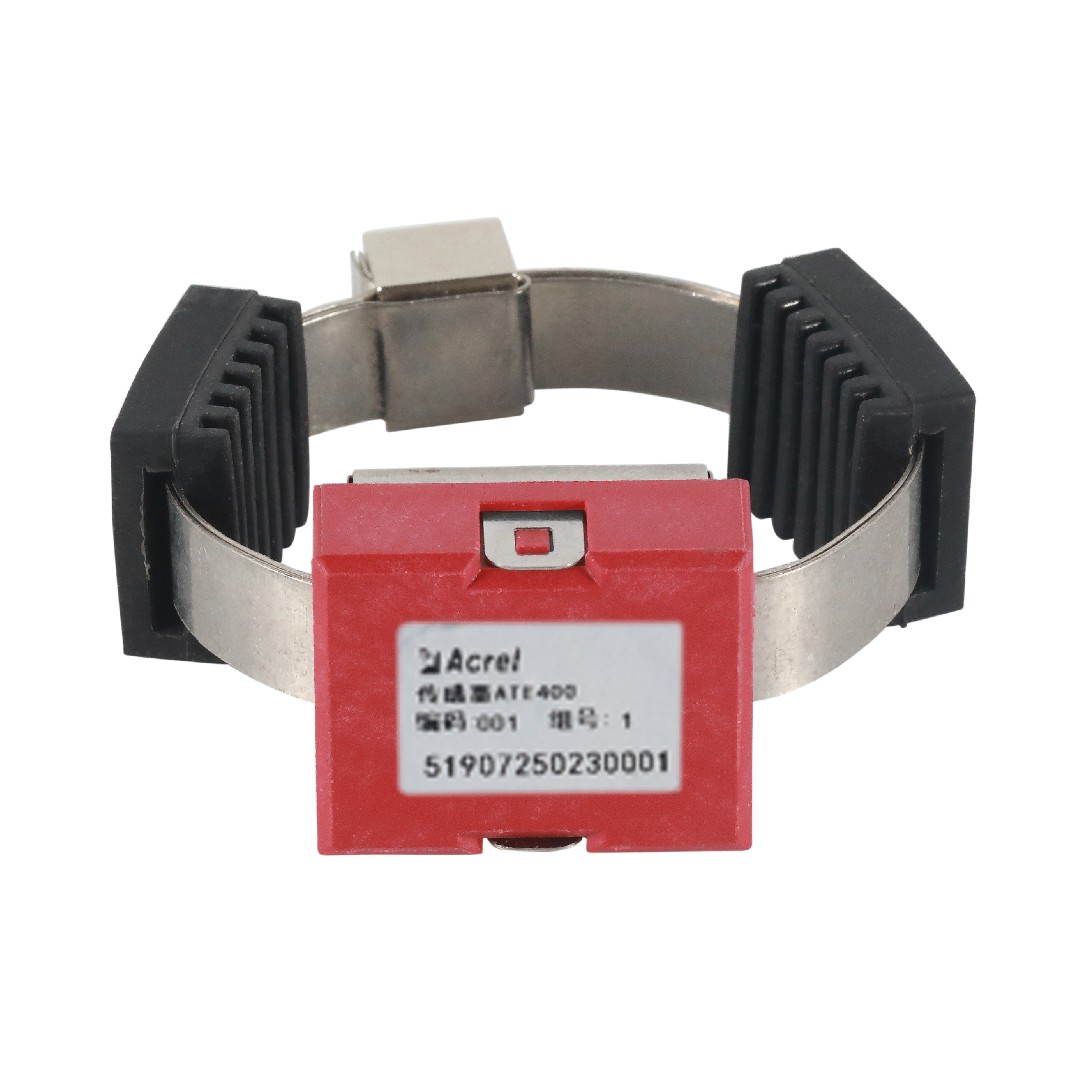

WJT-S400

Wireless frequency

470Mhz

Transmission distance

500m(Open area)

150m(Open area)

Sampling frequency

25sec

15sec

Transmission frequency

5min

15sec

Installation

Bolted

Alloy chip fixing

Power supply

Battery(≥5years)

CT-powered, I≥5A

Service life

≥10years

≥10years

Temperature range(25℃)

-50 oC ~ 300 oC

-50 oC ~ 125 oC

Accuracy

±1℃

±1℃

Sensor probe

PT100 prob(2m)

Alloy bottom

Application

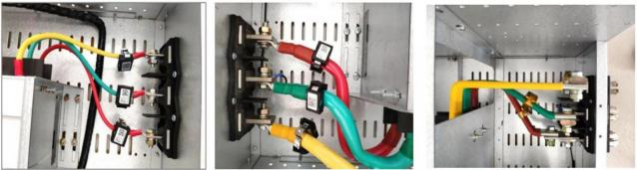

Bus bar, Cable joint, Case & fixed contact

Operating environment

Temperature ：-25 ℃ ~ 70  ℃ ；Humidity≤95%

Maximum operating voltage

≤750V

≤35kV

Product size

65 x 70 x 45.5

20.4x26.8x12.8

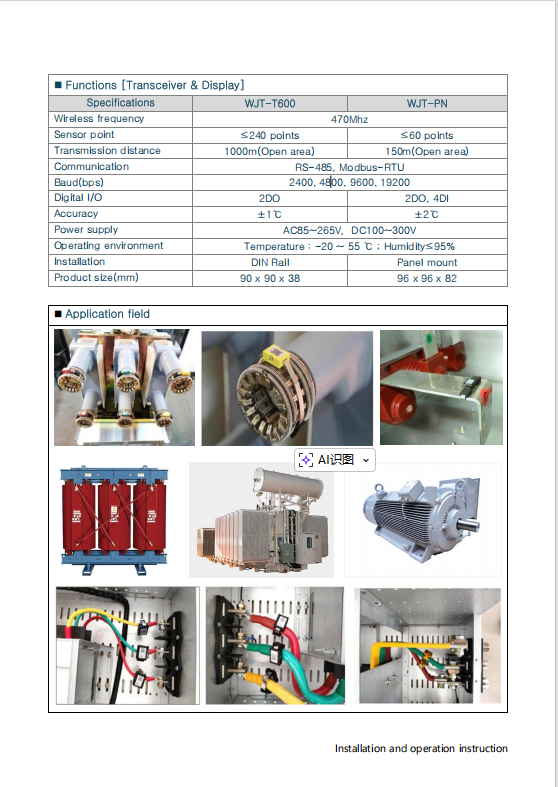

Specifications

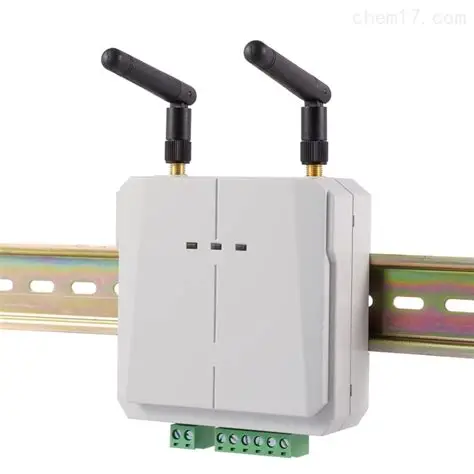

WJT-T600

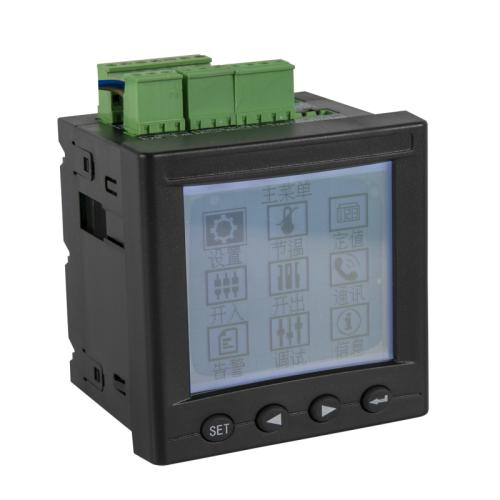

WJT-PN

Wireless frequency

470Mhz

Sensor point

≤240 points

≤60 points

Transmission distance

1000m(Open area)

150m(Open area)

Communication

RS-485, Modbus-RTU

Baud(bps)

2400, 4800, 9600, 19200

Digital I/O

2DO

2DO, 4DI

Accuracy

±1℃

±2℃

Power supply

AC85~265V， DC100~300V

Operating environment

Temperature ：-20 ~ 55 ℃ ；Humidity≤95%

Installation

DIN Rail

Panel mount

Product size(mm)

90 x 90 x 38

96 x 96 x 82
