● Wireless transmit,470MHz;● Wireless transmission distance, 150 meters in open area;● Alloy chip, for CT-powered;● Widely temperature measuring range, -50℃~+125℃.
Temperature sensor

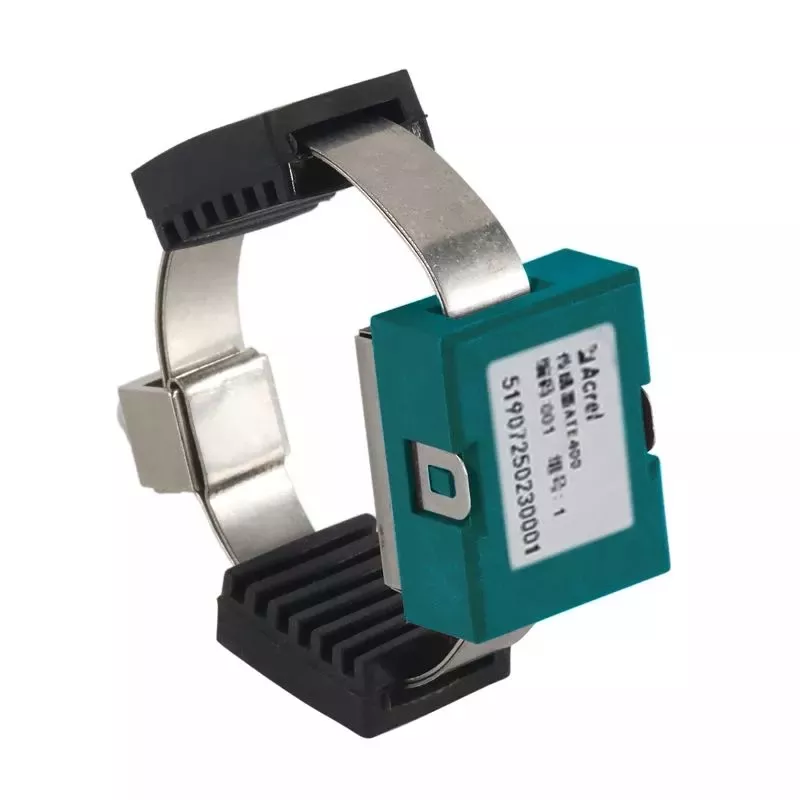

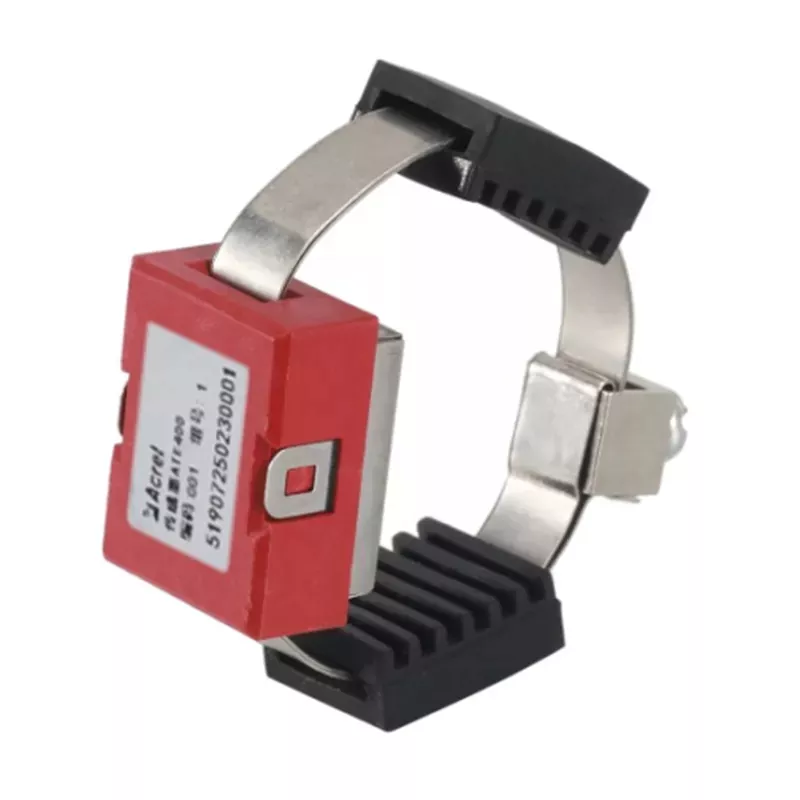

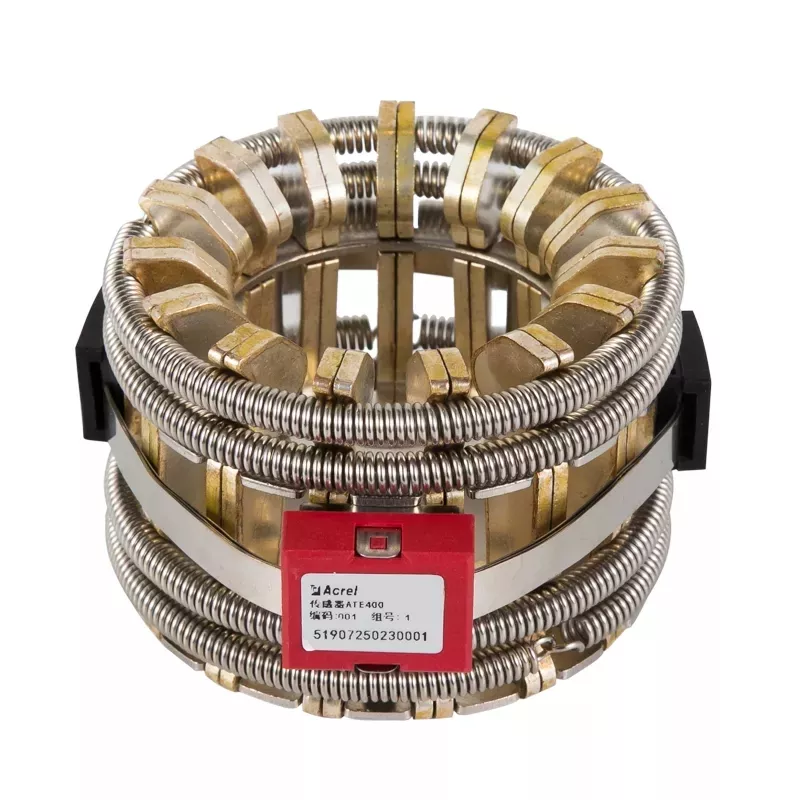

ATE400
Wireless frequency
470MHz / 433Mhz
Communication distance
150m in open area
Sampling frequency
15s
Transmitting frequency
Power source
CT-powered, starting current≥5A

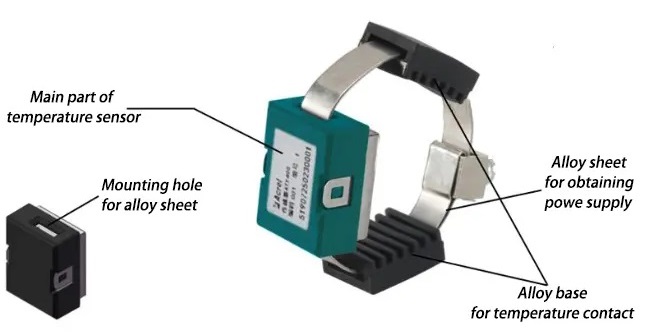

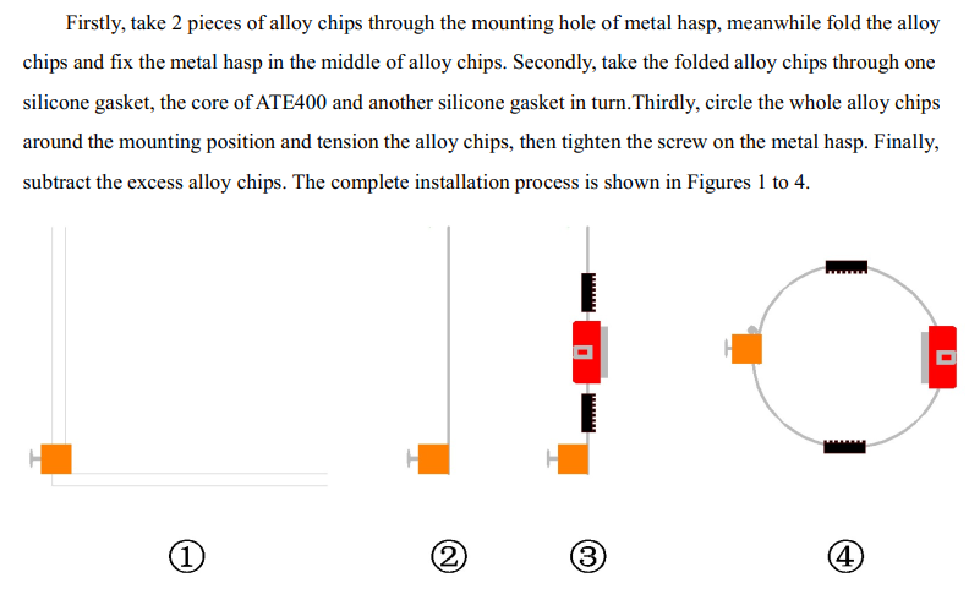

Installation
Alloy chip fixing
Sensor probe
Alloy bottom
Range of temperature
-50~+125℃
Precision
±1℃

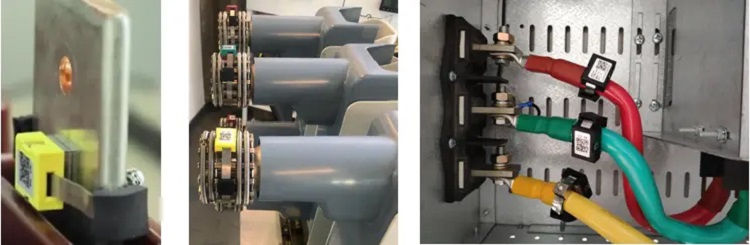

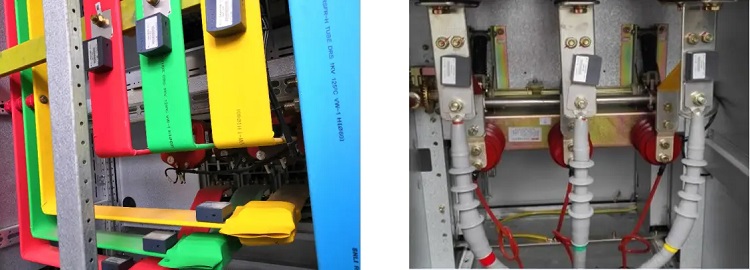

Application
Joints in high or low voltage switchgears
Environment
Temperature
Operating: -40~+125℃; Storage: -25~70℃
Humidity
≤95% (No condensation)
Altitude
＜2000m
Atmospheric pressure
86kPa~106kPa
